Ground Control Toughsat XP

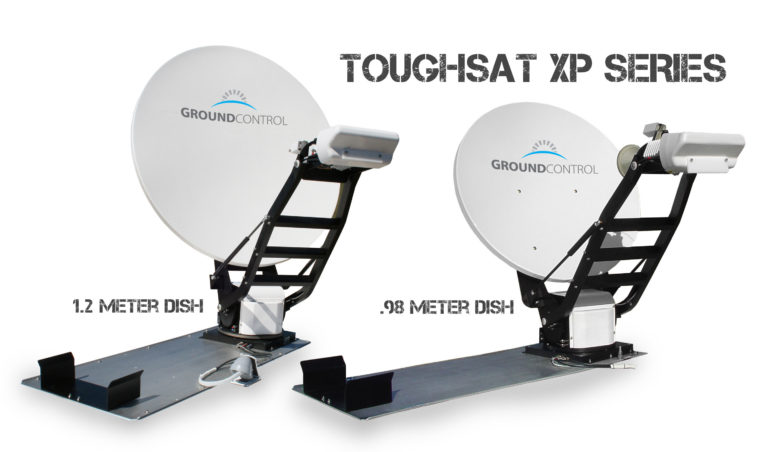

Ground Control TOUGHSAT XP Series

Available Options: 1.2 & .98 Meter

The Toughsat XPs are Ground Control’s professional series mobile satellite systems that have incorporated the best of their earlier models and expand with new powerful design features that work in normal or extreme environments. Operation is as easy as pressing the “Deploy” button on the Toughsat controller. In a few minutes, it will automatically create a wired or wireless high-speed network for any in-range device. Our premium grade Select Network 20Mbps x 5Mbps Service provides the speeds needed for Internet, and for our optimized VoIP phone and phone service. Speak with us to learn why the Toughsat XP mobile satellite system a perfect in-field communications tool.

Toughsat XP .98 and 1.2 Meter Mobile Dish - General Features

  • Manufactured by Ground Control
  • Complete ready-to-go system pricing – No other equipment needed to purchase for operation
  • Bundled with our high-performance SELECT Network service providing 20Mbps x 5Mbps Internet speeds
  • Special service pricing for public safety organizations
  • One-button operation. The Toughsat may be deployed and operated by anyone with little or no training
  • Establishes a self-contained local area wireless “G” network (100′ radius) automatically
  • Complete system pricing includes Toughsat TS2 controller & iDirect Evolution X7 router
  • Black anodized billet aluminum construction, UV resistant plastics, sealed all-weather electronics
  • System is ideal for our VoIP phone service. Connect 1 or 10 phones that work like any phone
  • Typical seek time to find and lock on satellite and establish broadband connectivity in minutes
  • Computer control is not required. There is no software to install on any computer
  • Both .98 & 1.2 systems have low stow heights below 12 inches. Excellent for vehicle clearance issues
  • No external equipment (including iDirect router) is required to find and peak on any Ku-band satellite
  • No certification or licensing required for use. System may be operated by anyone
  • Dish peaking accuracy is within 0.1° with near zero play using dish braking technology
  • Impervious to magnetic interference. Search routines do not use a compass to acquire satellite
  • The XP is SNG rated to stream live video at guaranteed 4 x 4 Mbps with streaming services
  • Autostow feature – Dish will automatically stow if rig is moved or dish goes off signal
  • Optional UPS. A backup battery for stowing the dish if power is shut off or disconnected
  • 6 watt transmitter is standard… required for 20Mb x 2Mb plans or video streaming (8 watt available)
  • The Toughsat is capable of locking on any liner polarized Ku-band satellite in orbit
  • Modular design – components easily replaced in field, normally within one hour
  • Onboard sensors allow quick-search for up to 10° of vehicle/rig tilt (longer times for tilting of > 10°)
  • No-backlash locking mechanisms for azimuth and elevation to stabilize signal in high-wind operation
  • Dish arm stabilizing pneumatics maintain radio position in high-wind operation
  • The .98m XP is operational in Cat 1 hurricane force winds of up to 75 mph (the 1.2m XP is operational 50 mph)
  • The XP is operational in temperatures of -20° to 140°F (-29° to 60° C) at 100% humidity
  • The XP operates in extreme weather with an IP-66 ingress rated with IP-67 components
  • The .98m XP weighs less than 125 lbs (56.7 kg). The 1.2m XP is 133 lbs
  • Powered by 100-240 VAC 50-60 Hz with US, UK, EU, AU and Brazil plug types available
  • Optional antenna booster extends wireless connectivity up to half a mile
  • One button stowing in less than one minute from fully deployed
  • Operates globally in northern or southern hemispheres
  • Certified field technicians in the U.S. and Canada for on-site installations
  • Free 24-7 U.S. based technical support from IP Access

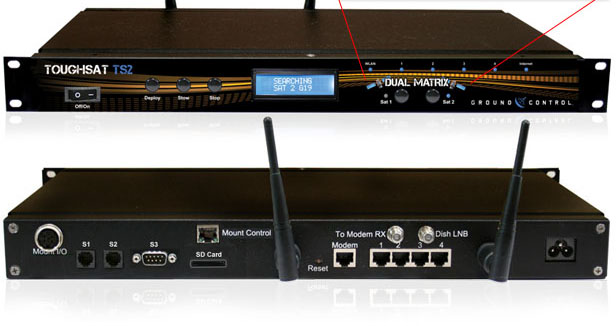

Toughsat TS2 Controller

Toughsat TS2 ACU (Antenna Control Unit)

The TS2 is Included with new systems. Contact us for upgrade cost for existing systems.
  • One-button “Deploy” and one-button “Stow” commands. Requires little or no training to operate.
  • Sat 1 & Sat 2 buttons enable powerful redundant technologies for maintaining 100% uptime.
  • Backlit display on 1RU ACU panel for real time system status.
  • A 1RU ACU 19″w x 12″d x 1.75″h x with integrated full feature Wi-Fi router and 4 port LAN.
  • Integrated full feature 4 port router to network up to 256 connected devices.
  • Wireless 802.11 “G” access point rated at 54Mbps, with 4 port full-duplex 10/100 Ethernet switch.
  • Automatically establishes a 100′ wireless access point and wiring to computers is optional.
  • Integrated router is easily bypassed for supporting alternative router.
  • Integrated high capacity MicroSD card for user manuals and other documents.
  • Integrated DVB-S2 tuner reduces acquisition time and provides for satellite modem independence.
  • Designed for communication with iDirect routers from Ground Control or other iDirect providers.
  • Wireless Security TKIP (WPA) and AES (WPA2) security with 128-bit encryption.
  • SPI firewall, VPN passthrough, MAC address filtering, NAT, DMZ, port forwarding, port triggers.
  • DHCP server, DHCP client, QOS, Tos/DiffSerf, UPnP, MAC address clone, RIP v1, RIP v2.
  • Multiple auto-stow routines, loss of signal, vehicle movement, power loss, collisions.
  • Custom TS2 panel and web interface branding available for qualified resellers.
  • The TS2 is compatible with all Toughsat mobile satellite systems.
